How to Insulate a Flue Pipe: A Complete DIY Guide 2026

Renovations and new installations can make it necessary to build a new flue pipe that doesn't fit inside the walls of the house. This means you have to deal with an external installation that can cause draft and condensation problems. Insulation is a vital necessity for the flue pipe: when it is well covered, it can provide maximum draft without causing condensation stains and corrosion. It is the temperature difference—and therefore the specific weight—between the fumes and the surrounding cold air that generates the upward thrust.

The most suitable insulation material is glass wool or rock wool, which is practically insensitive to heat and lasts as long as the pipe itself. The material is available in mats with a thickness of 5 cm (about 2 inches) that are wrapped around the pipe and tied with steel wire. Instead of using vibrated concrete blocks, the insulating mass is contained by a copper sheet, which has the advantage of being lightweight and not needing ground support. Anchoring the fins to the wall with wall plugs is sufficient to hold the cladding in place.

For all your home improvement needs, including tools and materials for this project, check out our selection of quality supplies.

Why Insulate an External Flue Pipe?

An uninsulated external flue pipe cools down quickly. This cooling reduces the draft (the upward movement of smoke and gases) and leads to condensation inside the pipe. Condensation mixed with combustion byproducts creates a corrosive acid that can damage the pipe over time. Proper insulation keeps the internal temperature high, ensuring a strong draft and preventing condensation.

Materials You'll Need

• Insulation Mats: Glass wool or rock wool mats, 5 cm thick.
• Steel Wire: For tying the insulation around the pipe.
• Copper Sheet: For the external protective cladding.
• Wall Anchors and Fins: To secure the cladding to the wall.
• Fasteners: Screws, bolts, and brackets.

You can find many of these materials and tools in our home improvement collection.

Step-by-Step Procedure

1. Secure the Steel Flue Pipe

First, anchor the steel flue pipe solidly to the wall. Make sure it passes well away from wooden beams and eaves. Use sturdy brackets and wall plugs appropriate for your wall type.

2. Wrap the Insulation

Carefully wrap the glass wool or rock wool mats around the entire length of the flue pipe. Overlap the edges slightly to ensure there are no gaps. Secure the mats tightly using steel wire, wrapping it around the insulation at regular intervals.

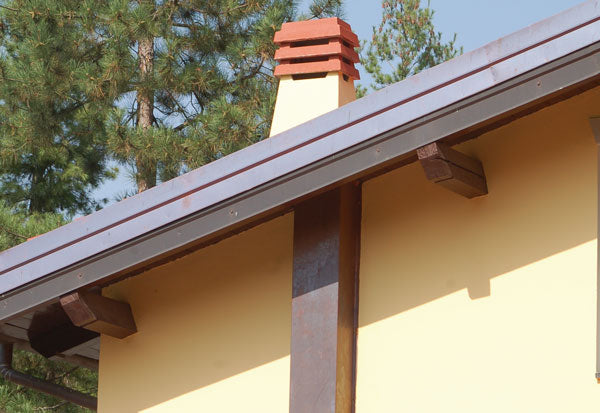

3. Install the Protective Metal Cladding

To protect the insulation from weather and physical damage, mount a metal cladding. Copper is an excellent choice because it is durable, lightweight, and develops a beautiful patina over time that can complement the style of your house. You can have the copper sheets pre-bent at a building materials supplier.

For more outdoor project ideas and supplies, visit our garden supplies and outdoor patio furniture collections.

4. Anchor the Cladding to the Wall

Attach the copper cladding to the wall using metal fins. Drill holes into the wall, insert wall plugs, and screw the fins in place. This structure is strong enough to support the entire cladding without needing a ground foundation.

5. Final Check

Ensure that the entire flue pipe is covered from top to bottom. A well-insulated flue pipe, combined with a modern monolithic chimney that coordinates with your roof tiles, will eliminate problems with condensation, infiltration, and poor draft.

Browse our lighting collection to complement your renovated space with the perfect fixtures.

Frequently Asked Questions (FAQ)

What is the best insulation for a flue pipe?

Glass wool or rock wool is the best choice. These materials are fire-resistant, provide excellent thermal insulation, and are durable. They are available in mat form and are easy to wrap around pipes.

Can I use a different material instead of copper for the cladding?

Yes, you can use stainless steel or galvanized steel. However, copper is preferred for its lightweight nature, corrosion resistance, and aesthetic appeal as it ages. For other outdoor decor ideas, check our selection.

How thick should the insulation be?

A thickness of 5 cm (about 2 inches) is standard and effective for most residential flue pipes. In very cold climates, you may consider a thicker layer.

Do I need a professional to install flue pipe insulation?

If you are comfortable with basic DIY tasks like drilling into walls and using hand tools, you can do it yourself. However, for gas or high-temperature systems, it is always best to consult a professional to ensure safety and compliance with local building codes.

For more wall decor and finishing touches for your home, visit our store.
