DIY Wooden Kitchen Console Table | How to Build It 2026

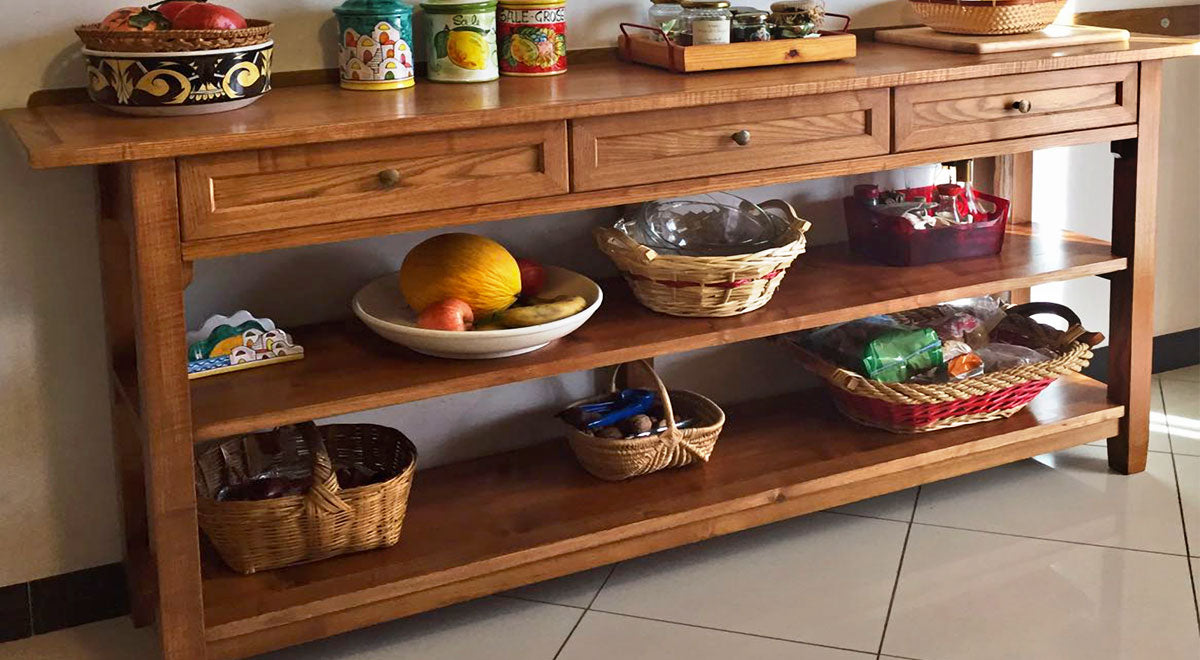

This DIY wooden console table was born out of the need to replace a similar mass-produced model whose shelves weren’t sturdy enough to support the weight of pots and pans. Although it looks similar to the original, this kitchen console is much more stable and robust, both because it uses a well-proportioned joinery system instead of screws and dry dowels, and because of reinforcements in the central section that improve the shelves’ load-bearing capacity. Considering the shelves measure about 1600×320 mm, the weight they can bear is significant, even if for photographic purposes the piece is styled with rather light objects.

The structure of the DIY console and all visible parts are made of well-seasoned ash wood, left to acclimate before being processed into pieces. Particular care was taken in building the top, which is counterbalanced by being made of three layers: poplar plywood, fir strips, and ash veneer strips enclosed in a frame.

How to Design a Self-Built Console

For assembling the structural parts, the Domino system is used, which involves inserting sturdy tenons into mortises cut into the pieces to be joined. This is a very strong joining method, but it requires great precision in execution. The stiles and rails that make up the sides are clamped together after opening the necessary grooves to lock the shelves from below and those for connecting the other pieces.

The top consists of a poplar plywood core onto which first-choice fir strips (5×80 mm) are glued, and on top of these, the visible ash part (3 mm thick) obtained with a thickness planer. This system ensures excellent stability. Around the top, a frame is made with ash strips cut at 45°, joined using the biscuit system; this is better suited than Domino when thicknesses are limited and allows for some corrective adjustment during assembly.

Materials and Tools Needed

• Ash wood for visible parts and frame
• Poplar plywood for the core
• Fir strips (5×80 mm)
• Wood glue and clamps
• Domino joiner or biscuit joiner
• Router for mortises and grooves
• Thickness planer or sander
• Measuring tape, square, and pencil
• Home improvement tools like a circular saw or jigsaw

Step-by-Step Construction

1. Cutting and Preparing the Pieces

Start by cutting all the ash, plywood, and fir pieces to size according to your design. Make sure the wood is properly acclimated to your workshop environment to avoid warping later. Use a work surface that is flat and stable for marking and cutting.

2. Making the Side Panels

Cut the mortises in the stiles and rails for the Domino tenons. Also cut the grooves for the shelves. Assemble each side panel dry first to check fit, then glue and clamp. Allow the glue to cure fully.

3. Building the Shelves

For each shelf, glue the poplar plywood core, then glue the fir strips on top and the ash veneer on the visible face. Clamp and let dry. Trim to final dimensions and sand smooth.

4. Constructing the Top

Build the top as a sandwich: poplar plywood core, then fir strips, then ash veneer. Create a frame from ash strips with 45° mitered corners, joined with biscuits. Attach the frame around the top using glue and clamps.

5. Assembling the Console

Attach the shelves to the side panels using glue and Domino tenons. Then attach the top using the same method. Ensure everything is square and level. Add any central reinforcements for extra stability.

6. Making the Drawers

For the drawers, use ash for the fronts and plywood for the sides and bottoms. Cut dovetail or box joints for strength. Install drawer slides for smooth operation. Consider adding under-cabinet lighting inside the drawers for a premium feel.

Finishing Touches

Sand all surfaces progressively from 120 to 220 grit. Apply a wood stain or oil finish to enhance the ash grain. Seal with a matte or satin polyurethane for durability, especially since this console will be used in a kitchen or dining area where spills may occur.

Styling Your Console

Once your console is complete, style it with items that reflect your personality. Use wall decor above the console to create a focal point. Add a rug underneath to define the space. Place a mirror or artwork on the wall behind it. Use curtains on nearby windows to soften the look.

FAQ

What type of wood is best for a DIY kitchen console?

Hardwoods like ash, oak, or maple are ideal because they are durable and can withstand the weight of kitchen items. Ash is especially good because it has a beautiful grain and is strong yet workable.

Do I need special tools to build this console?

While basic woodworking tools are sufficient, a Domino joiner or biscuit joiner makes the joinery much easier and stronger. A router is also helpful for cutting mortises and grooves. You can find many home improvement tools online to get started.

How long does it take to build a console like this?

For an experienced woodworker, this project can take a weekend to a week, depending on the complexity of the joinery and finishing. Beginners should allow more time for learning and adjustments.

Can I modify the design to fit my space?

Absolutely! You can adjust the dimensions, add more drawers, or change the shelf configuration. Just make sure to maintain the structural integrity by keeping the joinery and reinforcements adequate for the new size.

How do I maintain the wood finish?

Dust regularly with a soft cloth. Clean spills immediately with a damp cloth and dry thoroughly. Reapply oil or wax every 6-12 months to keep the wood nourished and protected. For high-use areas, consider a more durable polyurethane finish.
